UKO T-Square
Compact, Efficient, Modern
“This model is the ideal blend of style and functionality, preferred by younger buyers. Its sleek and minimalist design fits perfectly with their aesthetic..”
– Partner from UK
Introducing a Fusion of Modern Style and Efficiency
Perfectly Complements Your Smaller Stock Tank Pool Selection with Superior Heating Solution

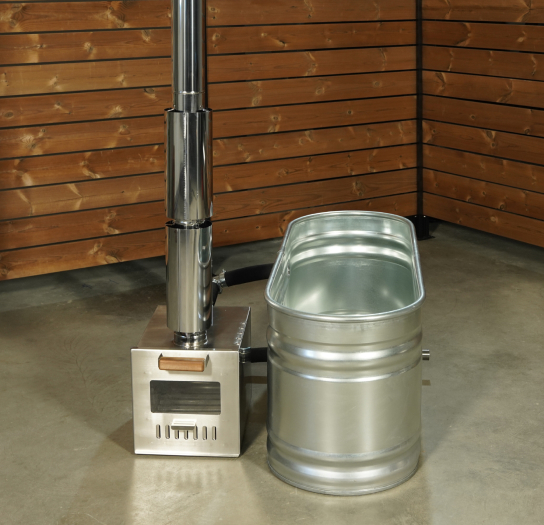

Stock Tank Ready
Modern, low-profile square firebox
High Quality AISI 304 or AISI 316 Stainless Steel

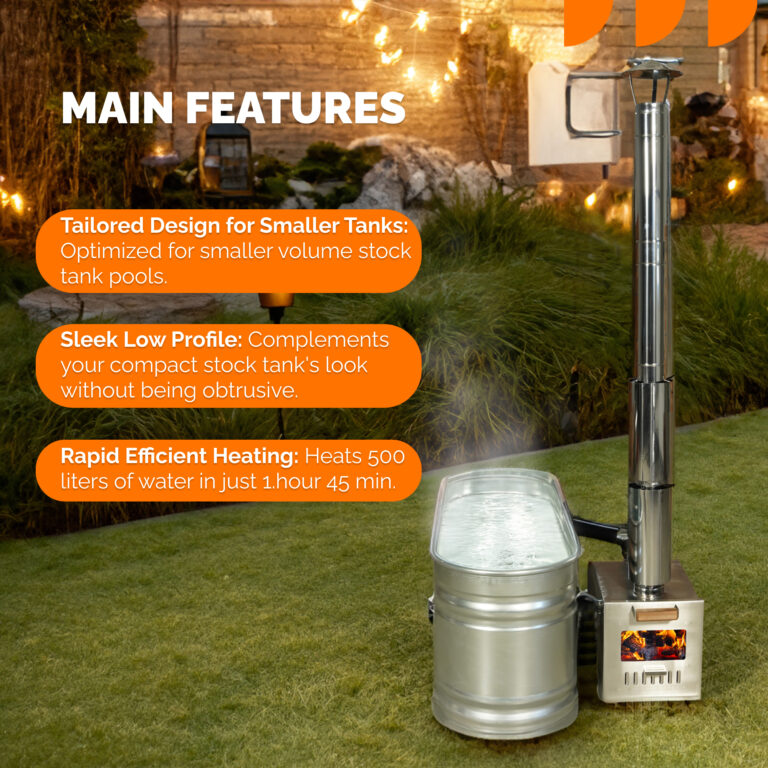

For Smaller Stock Tank Pools

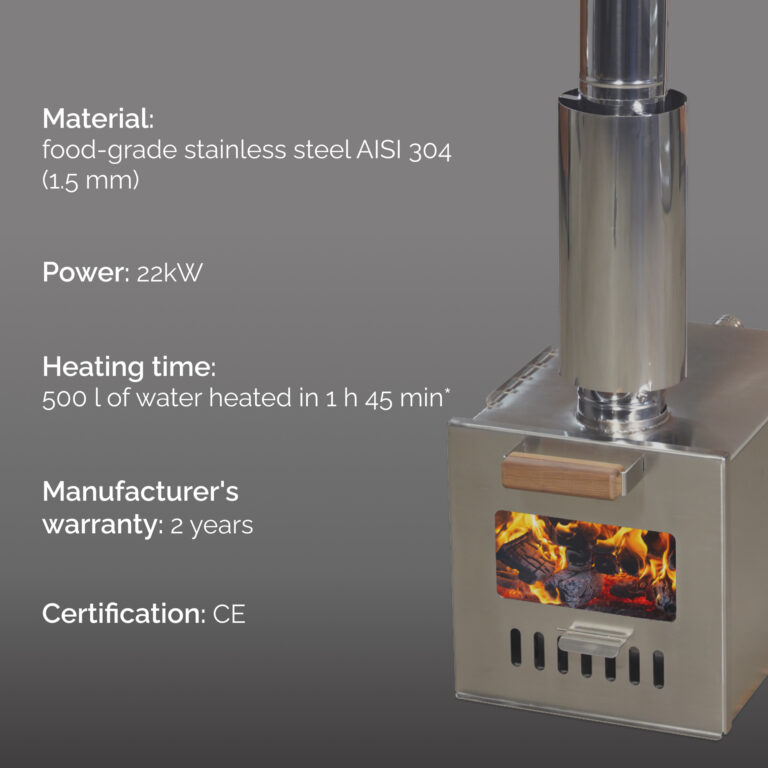

Specifications
Power Output
- 22KW
- Heats 1000 Liters (264 Gallons) From 10 To 39 Degrees (50 -> 102 Degrees Fahrenheit) In 3.5 Hrs
Material
- AISI 304 Or AISI 316 Stainless Steel
- 1.5 Mm Thickness
- Corrosion And Heat Resistant

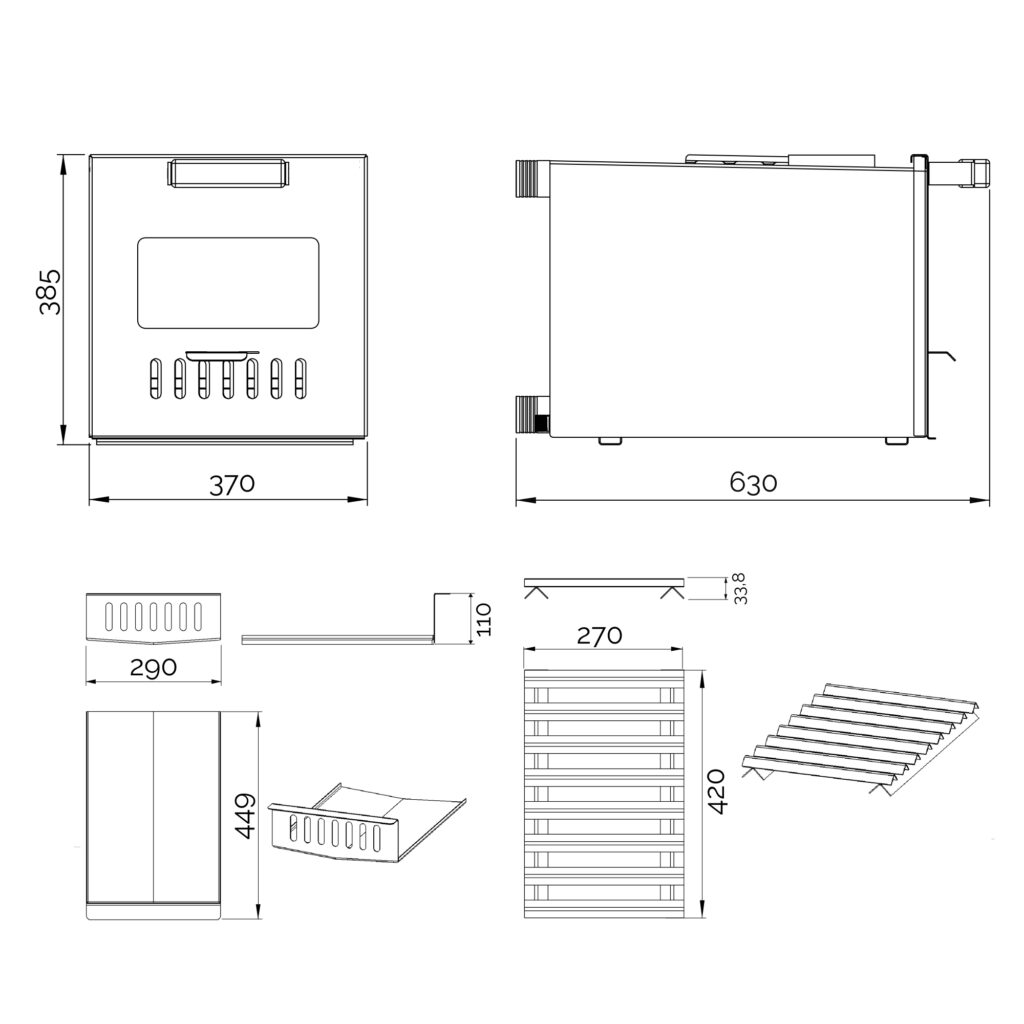

Dimensions
(H x W x L) mm / in
- Heater: 385x360x545 / 15.16×14.17×21.46
- Combustion Chamber: 210x300x425 / 8.27×11.81×16.73
- Firebox Opening: 165×300 / 6.49×11.81
- Chimney Length With Cap: 2260/ 89

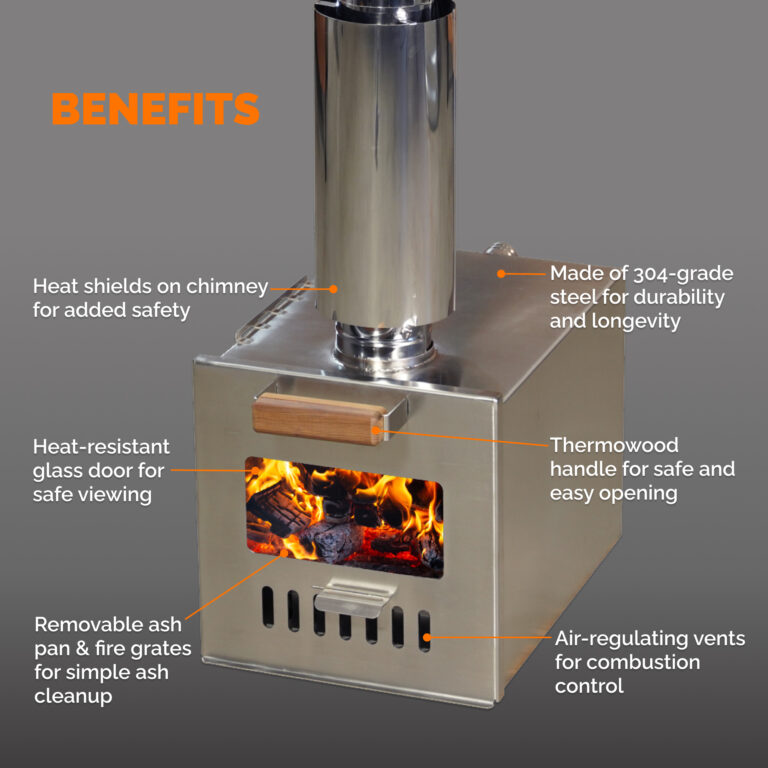

Features
- Removable “Lift Off” Door With Glass
- Thermowood Door Handle
- Controllable Air Vents
- Removable Ash Pan & Fire Grate
- Heat Shields On Lower Chimney Flues
Design
- Low Profile Square Box
- Modern Minimalism

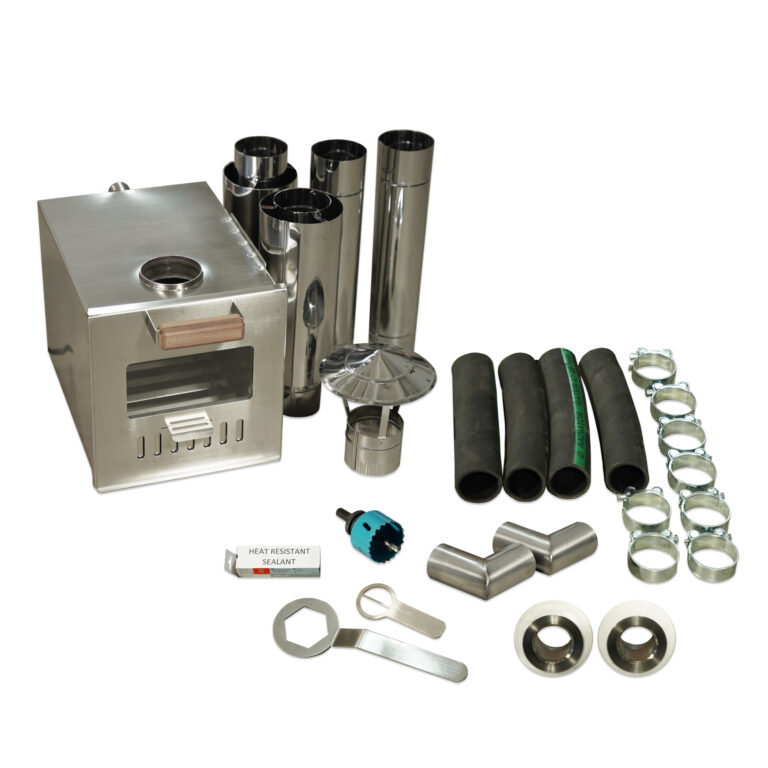

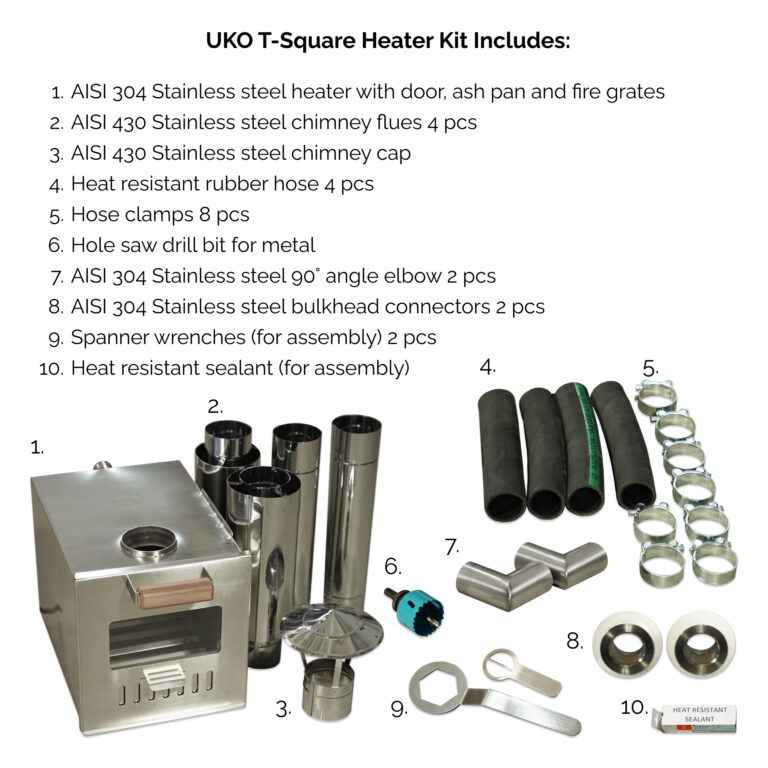

Kit Includes
- AISI 304 Or AISI 316 Stainless Steel Heater With Door, Ash Pan And Fire Grates
- AISI 430 Stainless Steel Chimney Flues 4 Pcs
- AISI 430 Stainless Steel Chimney Cap
- Heat Resistant Rubber Hose 4 Pcs
- Hose Clamps 8 Pcs
- Hole Saw Drill Bit For Metal
- AISI 304 Stainless Steel 90° Angle Elbow 2 Pcs
- Spanner Wrenches (For Assembly) 2 Pcs
- AISI 304 Stainless Steel Bulkhead Connectors 2 Pcs
- Heat Resistant Sealant (For Assembly)
Manufacturer’s Warranty
- 2 years
Certification
- CE
Minimum Order Quantity
- 12 Kits – 1 Euro-Pallet
- Single Unit Sales Are Available, Albeit At A Higher Cost

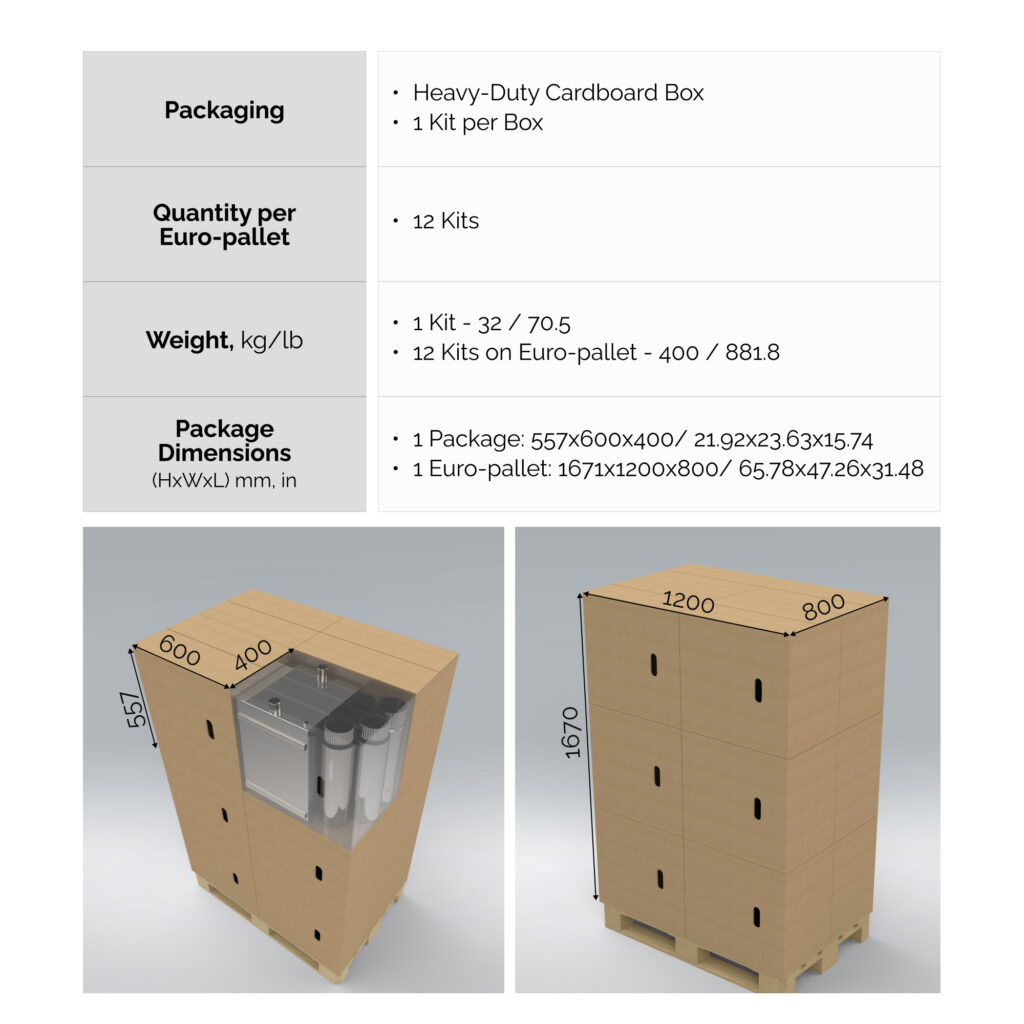

Packaging
- Heavy-Duty Cardboard Box
- 1 Kit Per Box
Package Dimensions
(HxWxL) mm, in
- 1 Package: 557x600x400/ 21.92×23.63×15.74
- 1 Euro-Pallet: 1671x1200x800/ 65.78×47.26×31.48
Quantity per Euro-pallet
- 12 Kits
Weight, kg/lbs
- 1 Kit – 32 / 70.5
- 12 Kits On Euro-Pallet – 400/ 881.8
recommended for following Stock tank sized pools
Seamless Integration:
Designed to perfectly fit and function with a variety of stock tank pool models.
Quality Material:
AISI 304 and AISI 316 stainless steel types withstand high temperatures and resist the effects of water treatment chemicals, promising durability and consistent performance.
WHY UKO HEATERS?
Safe
Quick Heating
CE Certified
Easy Maintenance
FAQ
Why does the UKO T-Square model feature a “lift-off” door?
The “lift-off” door is designed to maximize the firebox opening for easy firewood input. Although the heater itself is compact, this door type allows for the largest possible firebox opening, enhancing convenience and efficiency in loading wood.
What are the best practices for optimizing heating efficiency when using the UKO T-Square heater with a stock tank pool?
Heating efficiency can be influenced by various factors, including outside temperature, starting water temperature, whether the stock tank is covered and the type of firewood used. For example, if the outside temperature is around 15 degrees Celsius (59 degrees Fahrenheit), the initial water temperature is 10 degrees Celsius (50 degrees Fahrenheit), and the stock tank is covered, you can expect the UKO T-SquareHeat heater to heat approximately 1000 liters (264 gallons) of water in approximately 3.5 hours to 39 degrees Celsius (102 degrees Fahrenheit).
